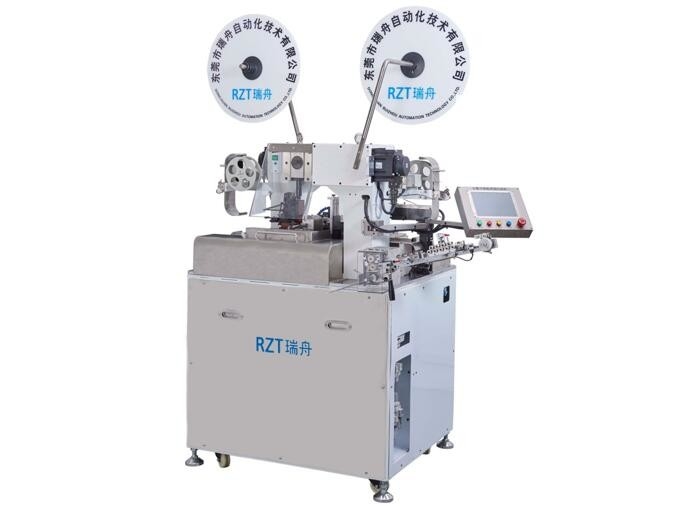

• Terminal Wire Crimping Machine DSP Control System Single End Stripping
Terminal Wire Crimping Machine DSP Control System Single End Stripping

Terminal Wire Crimping Machine DSP Control System Single End Stripping

Product Details:

Place of Origin: Dongguan, China
Brand Name: RZT
Certification: ISO, CE
Model Number: RZT-208A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 25-30 Days
Payment Terms: T/T
Supply Ability: 30 Sets/Month
Get Best Price Contact Now

Detail Information

Usage: Multifunctional Condition: New
Warranty: One Year Weight: 550KG
High Light:

automatic wire crimper

,

industrial crimping machine

Product Description



Wire Cable Manufacturing Equipment Full Automatic Terminal Crimping Machine





Product Features:



1. RZT innovated DSP control system VS PLC for common


2. 9 Pieces Mitsubishi servo systems applied



3. Applied for automobile harness & high precision request wiring system



4. Wire feeding device without mechanical adjustment


5. Crimping height adjusted by the digital control system tolerance less than 0.03mm


6. Applied for 30 & 40mm stroke. Compared with the traditional machine which only has 30mm stroke, but this manchine is applied for double stroke(30&40mm)





Product Specification:



Item Performance
Product Name Full digital both ends crimping machine
Brand Name RZT
Model RZT-208A
Function Wire cutting, single end stripping, both ends stripping, single end crimping, both ends crimping
Capacity 3000PCS/Hour(Depending on the type of the wire, wire length, the stripping length and the terminal type.)
Cutting length 27mm~20,000mm
Cutting length accuracy <100mm, 0.5mm+ preset cutting length×0.002;
>100mm, 1.0mm+ preset cutting length×0.002
Stripping length No.1: 0.1mm~ 10.0mm
No.2: 0.1mm~ 17.0mm
Stripping length accuracy Tolerance at ± 0.1mm
Crimping capacity 21,500N
Detectors Wire existence, wire knotting, terminal presence, terminal crimping, stripping detecting, air pressure
Wire size AWG#14~AWG#30
Power source 1 phase/3 phase AC220V
Driver MITSUBISHI servo motor
Gas source >0.4~0.5MPa,60Nl/min above
Dimension Length:950mm Width:800mm Height:1290mm
(Excluding projecting portions)
