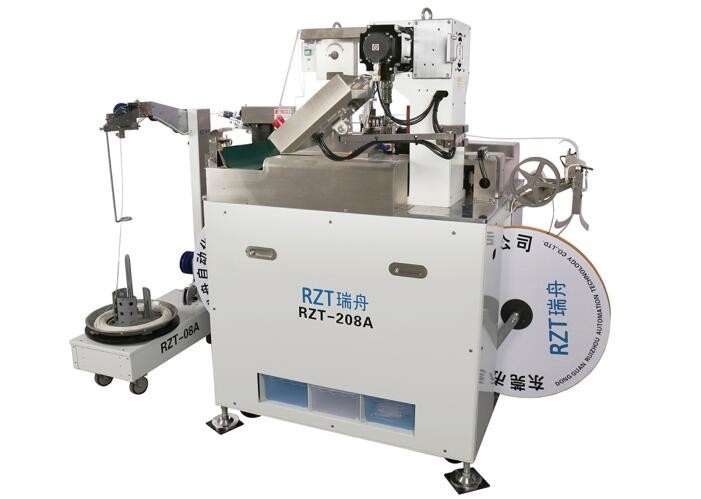

Full Automatic Wire Crimping Machine Standard Type 950 * 800 * 1290MM
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | RZT |
| Certification: | ISO, CE |
| Model Number: | RZT-208A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 25-30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets/Month |
|
Detail Information |
|||
| Function: | Wire Cutting, Single End Stripping, Both Ends Stripping, Single End Crimping, Both Ends Crimping | Power: | 3 Phase AC220V |
|---|---|---|---|
| Wire Range: | AWG#16~AWG#30 | Capcity: | 3000 Pcs/hour |
| Dimension: | L950*W800*H1290 | Weight: | 550KG |
| High Light: | automatic wire crimper,automatic terminal crimping machine |
||
Product Description
Full Automatic Both Ends Crimping Machine for Wire Harness Processing (Standard Type)
Product Features:
1. Applied for automobile harness & high precision request wiring system
2. High configuration: Mitsubishi servo, THK linear guder, ball screw and mold, SMC cylinder, pressure regulating value, NSK bearing, Keyence sensor etc.
3. Wire feeding device without mechanical adjustment

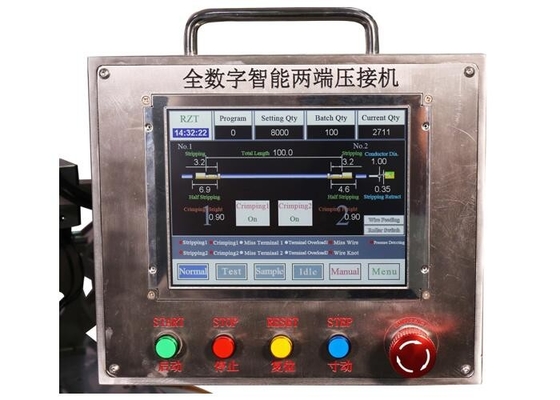

4. Crimping height adjusted by the digital control system tolerance less than 0.03mm
5. Applied for 30 & 40mm stroke. Compared with the traditional machine which only has 30mm stroke, but this manchine is applied for double stroke(30&40mm)
Product Specification:
| Item | Performance |
| Product Name | Full digital both ends crimping machine |
| Brand Name | RZT |
| Model | RZT-208A |
| Function | Wire cutting, single end stripping, both ends stripping, single end crimping, both ends crimping |
| Capacity | 3000PCS/Hour(Depending on the type of the wire, wire length, the stripping length and the terminal type.) |
| Cutting length | 27mm~20,000mm |
| Cutting length accuracy | <100mm, 0.5mm+ preset cutting length×0.002; |
| >100mm, 1.0mm+ preset cutting length×0.002 | |
| Stripping length | No.1: 0.1mm~ 10.0mm |
| No.2: 0.1mm~ 17.0mm | |
| Stripping length accuracy | Tolerance at ± 0.1mm |
| Crimping capacity | 21,500N |
| Detectors | Wire existence, wire knotting, terminal presence, terminal crimping, stripping detecting, air pressure |
| Wire size | AWG#14~AWG#30 |
| Power source | 1 phase/3 phase AC220V |
| Driver | MITSUBISHI servo motor |
| Gas source | >0.4~0.5MPa,60Nl/min above |
| Dimension | Length:950mm Width:800mm Height:1290mm (Excluding projecting portions) |
