Durable Wire Stripping And Crimping Machine English Language Supported
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | RZT |
| Certification: | ISO, CE |
| Model Number: | RZT-208A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 25-30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 30 Sets/Month |
|
Detail Information |
|||
| Function: | Wire Cutting, Single End Stripping, Both Ends Stripping, Single End Crimping, Both Ends Crimping | Application: | Wire Harness Processing Equipment |
|---|---|---|---|

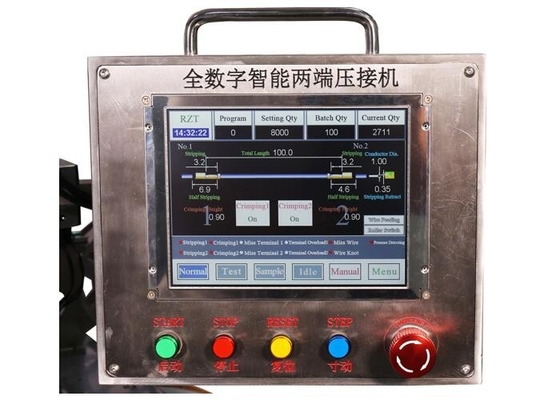

| Wire Range: | AWG#20~AWG#32 | System Language: | English |
| Capcity: | 3000 Pcs/hour | Dimension: | L950*W800*H1290 |
| High Light: | automatic wire crimper,automatic terminal crimping machine |
||
Product Description

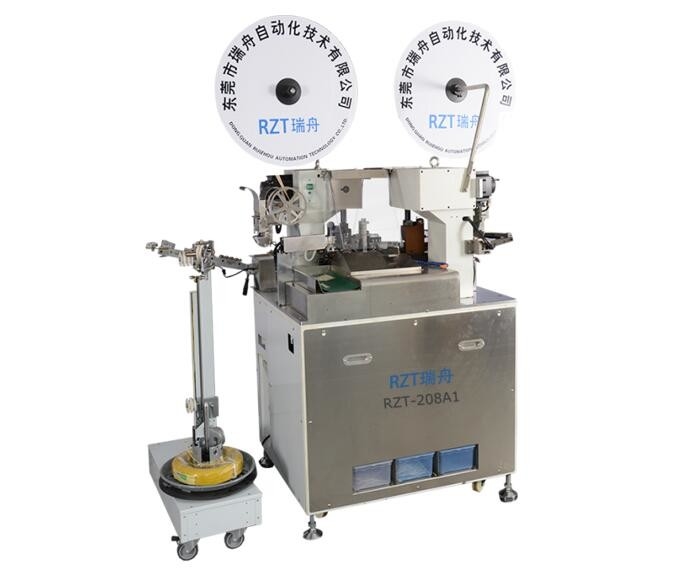

Full Automatic Both Ends Stripping And Terminal Crimping Machine
Product Features:
1. 9 Pieces Mitsubishi servo systems applied
2. RZT innovated DSP control system VS PLC for common
3. Applied for automobile harness & high precision request wiring system
4. Crimping height adjusted by the digital control system tolerance less than 0.03mm
5. Applied for 30 & 40mm stroke. Compared with the traditional machine which only has 30mm stroke, but this manchine is applied for double stroke(30&40mm)
Product Specification:
| Item | Performance |
| Product Name | Full digital both ends crimping machine |
| Brand Name | RZT |
| Model | RZT-208A1 |
| Function | Wire cutting, single end stripping, both ends stripping, single end crimping, both ends crimping |
| Capacity | 3000PCS/Hour(Depending on the type of the wire, wire length, the stripping length and the terminal type.) |
| Cutting length | 27mm~20,000mm |
| Cutting length accuracy | <100mm, 0.5mm+ preset cutting length×0.002; |
| >100mm, 1.0mm+ preset cutting length×0.002 | |
| Stripping length | No.1: 0.1mm~ 10.0mm |
| No.2: 0.1mm~ 17.0mm | |
| Stripping length accuracy | Tolerance at ± 0.1mm |
| Crimping capacity | 19,600N |
| Detectors | Wire existence, wire knotting, terminal presence, terminal crimping, stripping detecting, air pressure |
| Wire size | AWG#20~AWG#32 |
| Power source | 1 phase/3 phase AC220V |
| Driver | MITSUBISHI servo motor |
| Gas source | >0.4~0.5MPa,60Nl/min above |
| Dimension | Length:950mm Width:800mm Height:1290mm (Excluding projecting portions) |
