Product Details:

Place of Origin: Dongguan, China
Brand Name: RZT
Certification: ISO, CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 25-30 Days
Payment Terms: T/T
Supply Ability: 30 Sets/Month
Get Best Price Contact Now

Detail Information

Name: Fully Automatic Terminal Crimping Machine/tinning Machine Usage: Multifunctional
Applicable Wire Range: AWG#20-AWG#32 Air Pressure: 0.4-0.5Mpa
Crimping Capacity: 19,600N Warranty: 1 Year
High Light:

wire cut strip crimp machine

,

wire tinning machine

Product Description

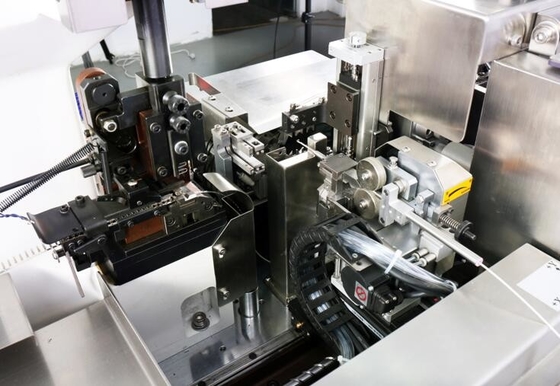

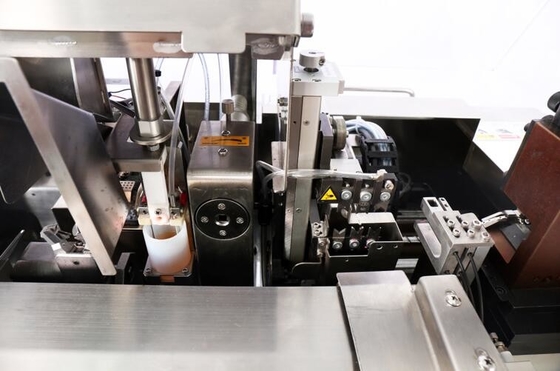

Automatic Terminal Crimping Wire Cable Cutting Stripping Twisting Soldering Machine Equipment





Product Features:



1. 360° Rotating & twisting, wire shape will be still round after the tinning process, precise control of the tinning.



2. High-efficiency step drive, high-accuracy and fast speed.



3. Applied for 30mm & 40mm stroke.



4. 9 pcs Mitsubishi servo systems applied. Japan Mitsubishi controlling technology, closed loop stepping controlling system, stable performance.


5. Import magnetic clutch controls terminal crimping machine to make the noise lower.



6. PLC controlling perfectly combined with mechanic cams controlling to ensure the best combination between the efficiency and the accuracy.



7. Independent research and development of man-machine interface. Date storage function will record the processing parameters, it is more suitable for the High Mix-Low Volume orders. it can save 100sets of processing procedures, easy to replace the wire type.





Product Specification:



Item Performance

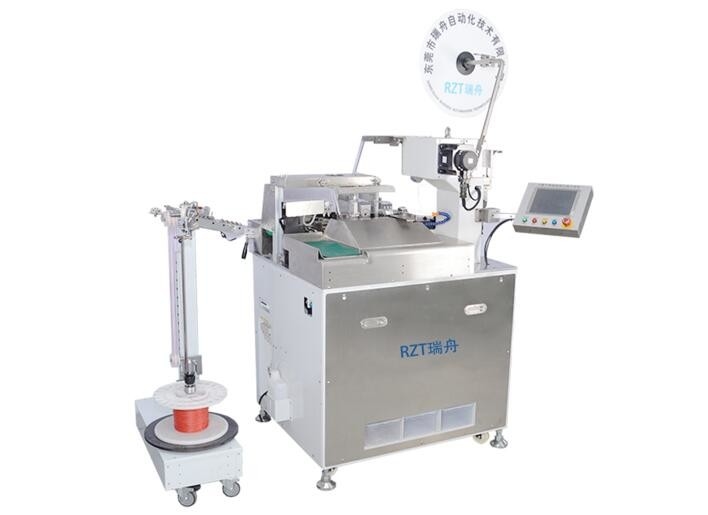

Product Name Full digital twisting, soldering and crimping machine (standard type)
Brand Name RZT
Model RZT-501B

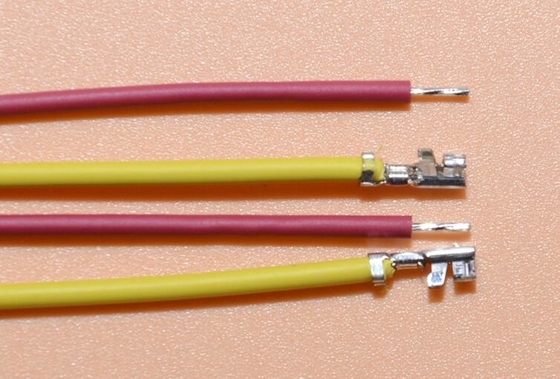

Function Wire cutting, single end stripping, both-ends stripping, single end crimping, single end twisting, single end soldering
capacity Max. 3,000 PCS/Hour (Depending on the type of the wires, wire length, stripping length and the terminal type.)
Cutting length 30mm~20,000mm
Cutting length accuracy <100mm, 0.5mm+ presetting cutting length×0.002;
>100mm, 1.0mm+ preset cutting length×0.002
Stripping length No.1# 0.1mm~ 10.0mm No.2# 0.1mm~ 20.0mm
Stripping length accuracy Tolerance at ± 0.1mm
Crimping capacity 19,600N
Detectors Wire existence, wire knotting, terminal presence, terminal crimping, stripping detecting, air pressure
Wire size AWG#20~AWG#32
Power source 1 phase/3 phase AC220V
Driver MITSUBISHI servo motor
Gas source >0.4~0.5MPa,100Nl/min above
Dimension Length:950mm Width:800mm Height:1,290mm
(Excluding projecting portions)
