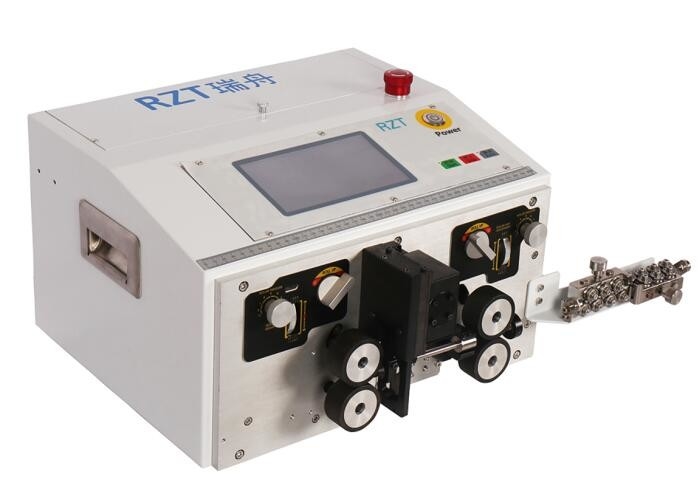

Teflon PVC Silicone Wire Cutting And Stripping Machine High Productivity
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | RZT |
| Certification: | ISO, CE |
| Model Number: | RZT-C371A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets / Month |
|
Detail Information |
|||
| Application: | Wire Stripper Machine | Usage: | Wire Cutting And Stripping |
|---|---|---|---|
| Condition: | New | Applicable Wire: | AVSS, VSF, IV, KV, UL, Teflon, Glass Wire, Etc. |
| Wire Range: | AWG#7~AWG#28 | Power: | AC220V 50/60HZ |
| High Light: | coax stripping machine,industrial wire stripping machine |
||
Product Description
Automatic Teflon PVC Silicone Wire Stripping Cutting Machine
Product Features:
1. One machine for dual purposes: Processing for thin & thick wire (10mm2~0.08mm2).
2. High precision: Applied for automobile harness & high precision request wiring system.
3. Super productivity: strong cut-off and power transmission for high quality processing, easy to replace the blades. During the processing, it will automatically detect & shut down if the wire is used up.
4. Easy operation & control: 7 inch touch screen offers easy menu navigation and display. Quick replace the catheter, stable wire feeding device and precise cutter device are designed to ensure the precision for wire harness processing.
Product Specification:
| Item | Performance |
| Product Name | Computerized Wire Cutting and Stripping Machine |
| Brand Name | RZT |
| Model | RZT-C371A |
| Cutting length | 0.1mm～99,999mm |
| Cutting length accuracy | ±(0.2+0.001xL)mm |
| Stripping length | Front: 0.1～47.9mm |
| End: 0.1～47.9mm | |
| Applicable wires | AVSS,VSF, IV, KV, UL, Teflon, Glass Wire, etc |
| Wire size | AWG#7～AWG#28 (10mm2~0.08mm2) |
| Wire feed speed | Variable (0~9 speeeds) |
| Power source | AC220V 50/60HZ |
| Motor power | 225W |
| Cutter material | Ultra fine particle alloy |
| Driver supply | Hybrid stepping motor |
| Dimension | Length:420mm Width:430mm Height:270mm |
| Weight | 27KG |
