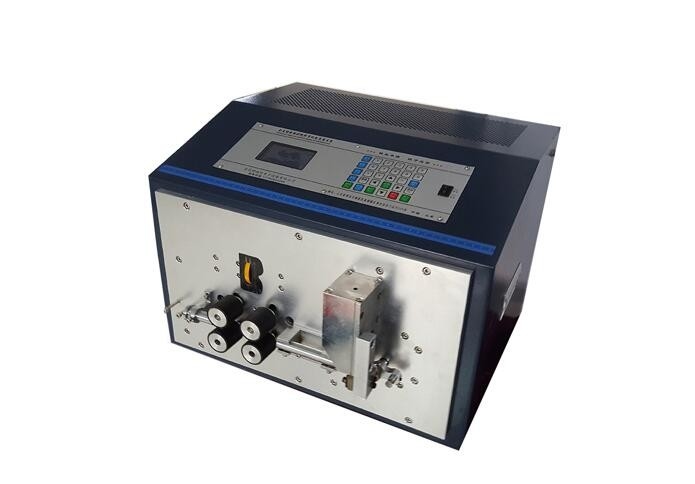

Automatic Strip Bending Machine With Imported High Speed Blade 180 - 300W
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | RZT |
| Certification: | ISO, CE |
| Model Number: | RZT-14B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets / Month |
|
Detail Information |
|||
| Cutting Diameter: | 0.1mm-25mm | Catheter Diameter: | 1.5mm-10mm |
|---|---|---|---|
| Power: | 180W~300W | Dimension: | L600mm*W450mm*H550mm |
| Weight: | 52KG | ||
| High Light: | wire processing machine,wire bending machine |
||
Product Description
Automatic Cable / Wire Cutting Stripping Bending Machine
Product Features:
This machine can process whole electric wire according to required length, cut off and stripping head, not to hurt the tegument and conductor, high precision, thus greatly improving efficiency. You are assured maximum flexibility and even more efficient way of meeting your wire processing need. Clockwise and counterclockwise, adjustable bending degree. The same wire harness can be bending in two ways.
Product Specification:
| Item | Performance |
| Product Name | Full Automatic Wire Harness Stripping Bending Machine |
| Brand Name | RZT |
| Model | RZT-14B |
| Display | 240x128mm LCD |
| Blade Material | Imported high-speed blade |
| Cutting Length | 0.1mm~99999.9mm |
| Front Stripping Length | 0.1mm~100mm |
| Bending Times | 13 times |
| Bending Length | The last bending is greater than 25mm |
| Bending Method | clockwise and counterclockwise, the same wire harness can be bending in two ways. |
| Cutting Diameter | 0.1~25mm |
| Catheter Diameter | 1.5mm~10mm |
| Tolerance | ±(0.002*L)mm |
| Capacity | 400~1000PCS/Hour |
| Power Source | AC220V 50/60HZ |
| Power | 180W~300W |
| Weight | 52KG |
| Dimension | Length:600mm Width:450mm Height:550mm (Excluding projecting portions) |
