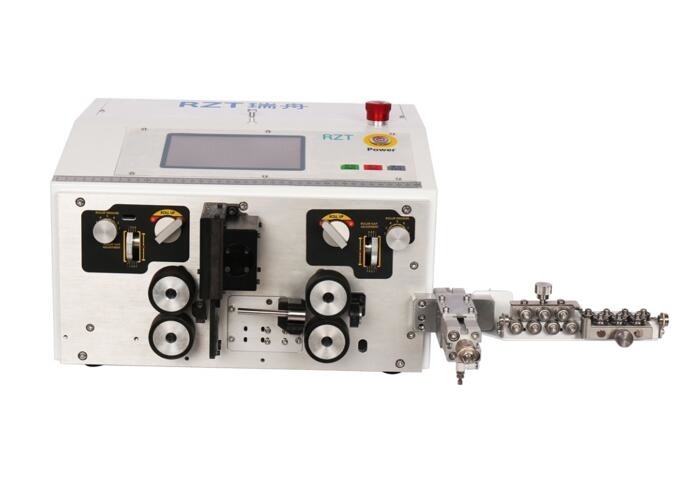

Automated Wire Cutting And Stripping Machine Square Shape 0 . 08 - 10MM2
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | RZT |
| Certification: | ISO, CE |
| Model Number: | RZT-C371A-M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets / Month |
|
Detail Information |
|||
| Wire Range: | AWG#7~AWG#28 | Usage: | Wire Stripping And Cutting |
|---|---|---|---|
| Applicable Wire: | AVSS, VSF, IV, KV, UL, Teflon, Glass Wire, Etc. | Dimension: | L430mm*W420mm*H270mm |
| Power: | AC220V 50/60HZ | Weight: | 30KG |
| High Light: | coax stripping machine,wire cutting stripping machine |
||
Product Description
Full Automatic Computerized Wire Cutting and Stripping Machine
Product Features:
1. High precision: Applied for automobile harness & high precision request wiring system.
2. One machine for dual purposes: Processing for thin & thick wire (10mm2~0.08mm2).
3. Easy operation & control: 7 inch touch screen offers easy menu navigation and display. Quick replace the catheter, stable wire feeding device and precise cutter device are designed to ensure the precision for wire harness processing.
4. Super productivity: strong cut-off and power transmission for high quality processing, easy to replace the blades. During the processing, it will automatically detect & shut down if the wire is used up.
Product Specification:
| Item | Performance |
| Product Name | Computerized Wire Cutting and Stripping Machine |
| Brand Name | RZT |
| Model | RZT-C371A-M |
| Cutting length | 0.1mm～99,999mm |
| Cutting length accuracy | ±(0.2+0.001xL)mm |
| Stripping length | Front: 0.1～47.9mm |
| End: 0.1～47.9mm | |
| Applicable wires | AVSS,VSF, IV, KV, UL, Teflon, Glass Wire, etc |
| Wire size | AWG#7～AWG#28 (10mm2~0.08mm2) |
| Wire feed speed | Variable (0~9 speeeds) |
| Power source | AC220V 50/60HZ |
| Motor power | 225W |
| Cutter material | Ultra fine particle alloy |
| Driver supply | Hybrid stepping motor |
| Dimension | Length:420mm Width:430mm Height:270mm |
| Weight | 30KG |
