7 . 5KG Wire Crimp Pull Tester , Wire Pull Test Machine 390 * 180 * 150MM
Product Details:
| Place of Origin: | Dongguan, China |
| Brand Name: | RZT |
| Certification: | ISO, CE |
| Model Number: | RZT-30B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15-20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 50 Sets / Month |
|
Detail Information |
|||
| Power: | Electronic | Measuring Range: | 0~1000N (0~100KG) |
|---|---|---|---|
| Net Weight: | 7.5KG | Size: | 390*180*150mm |
| High Light: | wire terminal pull tester,wire pull test machine |
||
Product Description

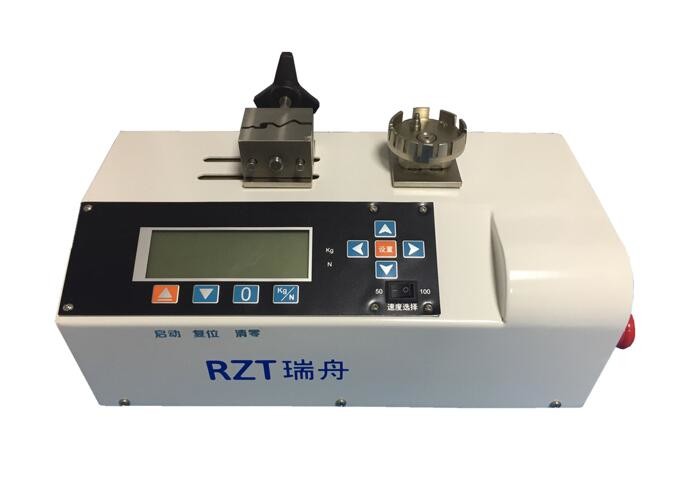

Multi-functional Digital Wire Crimp Pull Tester With 1000N
Product Features:
The motorized wire crimp pull tester has 12 slots which accommodate various terminal sizes. Press the green button to automatically test a crimped on wire terminal. After the test is completed, the tester will automatically return to the starting position, the peak force is held on the display.
Product Specifications:
| Product Name | Motorized Wire Crimp Pull Tester |
| Brand Name | RZT |
| Model | RZT-30B |
| Measuring Range | 0~1000N (0~100KG) |
| Units of Measure | Newton (N), Kilogram (KG) |
| Applied Force Accuracy | 0.2% of full scale |
| Pulling Speed | 50mm/min or 100mm/min |
| Max. Stroke | 43mm |
| Power Supply | 220V 50/60HZ |
| Net Weight | 7.5KG |
| Dimension | 390 x 180 x 150mm |
